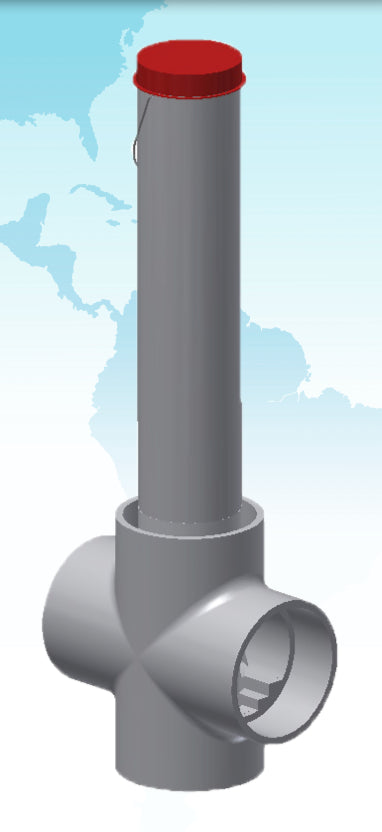

Clorinador 101

As the treated wastewater flows through the tablet feeder,
it makes contact with the chlorine tablets, which gradually
dissolve and slowly release even, controlled amounts of active
chlorine into the wastewater. If the flow rate increases, the
liquid level in the tablet feeder rises and more tablets are
immersed. If the flow rate decreases, the liquid level drops and
exposes fewer tablets to the effluent.
The rate of chlorination and the chlorine residual can be
adjusted. After adjustment, they remain constant and in
proportion to the flow. If needed, adjustments can be made by
varying the number of feed tubes that are filled.
The Model 101 is capable of disinfecting flows up to 1,500
gallons per day (gpd). Has a 4” diameter inlet and outlet;
lockable cover; risers are available.
